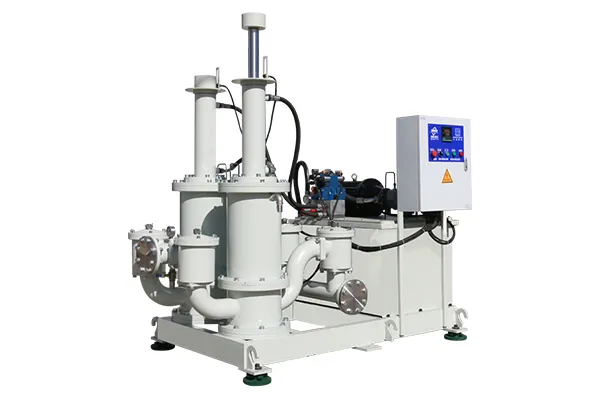

Stainless Steel Vertical Plunger Pump for Filter Press
Filter press feed pump for energy-efficient transfer of abrasive slurries in solid-liquid separation and dewatering applications
Vertical plunger pump is suitable for a wide range of industries involving hard, abrasive particles or corrosive materials. These include sand washing, river dredging, drilling mud, piling sludge, coal washing, denim dyeing, kaolin (ceramic clay) processing, and other chemical industries with high-abrasion or corrosive slurry conditions.

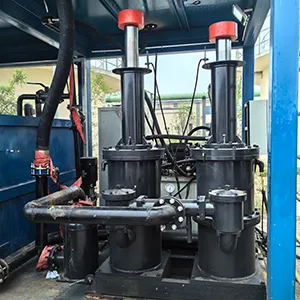

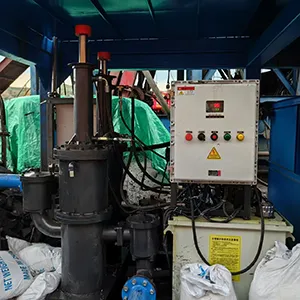

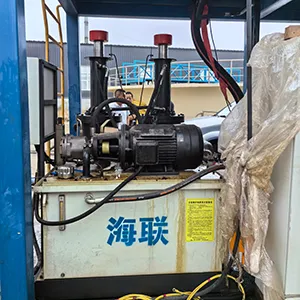

On-Site Applications
Technical Parameters
| Model | Rated Flow (m³/h) | Feed Pressure (MPa) | Head (m) | Motor (kW) | Cooling Method | Inlet/Outlet Flange | Cylinder Materials |
|
|
3 | 1.5 | 150 | 3 | Air cooling | DN50 | 45#/304/316L/2205 (Available options) |
|
|
10 | 1.5 | 150 | 3 | Air cooling | DN80 | |
|
|
15 | 1.5 | 150 | 4 | Air cooling | DN80 | |
|
|
20 | 1.5 | 150 | 5.5 | Air cooling | DN80 | |
|
|
35 | 1.5 | 150 | 5.5 | Air cooling | DN80 | |
|
|
48 | 1.5 | 150 | 7.5 | Air cooling | DN100 | |
|
|
60 | 1.5 | 150 | 9 | Air cooling | DN100 | |
|
|
80 | 1.5 | 150 | 11 | Air cooling | DN100 | |
|
|
100 | 1.5 | 150 | 15 | Air cooling | DN100 | |
|
|
120 | 1.5 | 150 | 18.5 | Air cooling | DN100 | |
|
|
140 | 1.5 | 150 | 18.5 | Air cooling | DN125 | |
|
|
160 | 1.5 | 150 | 22 | Air cooling | DN125 | |
|
|
200 | 1.5 | 150 | 37 | Air cooling | DN125 | |
|
|
250 | 1.5 | 150 | 45 | Air cooling | DN150 | |
|
|
300 | 1.5 | 150 | 55 | Air cooling | DN150 |
Features
- Significant energy reduction: Lower motor power compared with conventional slurry pumps results in 50%–80% lower energy consumption and reduced operating costs.
- Higher pressure and efficiency: Delivers higher outlet pressure (up to 2 MPa) than traditional slurry and screw pumps, improving filtration efficiency and reducing moisture content.
- Vertical structural design: Minimizes wear caused by abrasive particles in the slurry, significantly extending the service life of cylinders and seals.
- Excellent wear and corrosion resistance: Engineered for industries where both abrasion and chemical corrosion are common.
- Low noise and vibration: Operates smoothly without damaging flocculated slurry states.
- Smart lubrication system: Provides timed, closed-loop lubrication for seal groups to prevent hydraulic oil loss and contamination while avoiding human-error-related seal damage.
- High feed pressure: Ensures stable and reliable high-pressure feeding.
- LED status indicators: Allows operators to easily monitor real-time operating conditions; instructions are processed and issued through the PLC.
