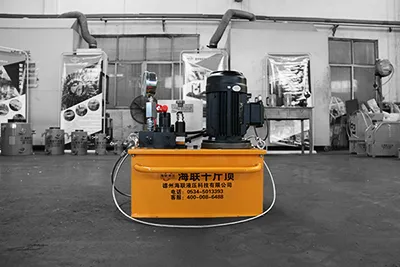

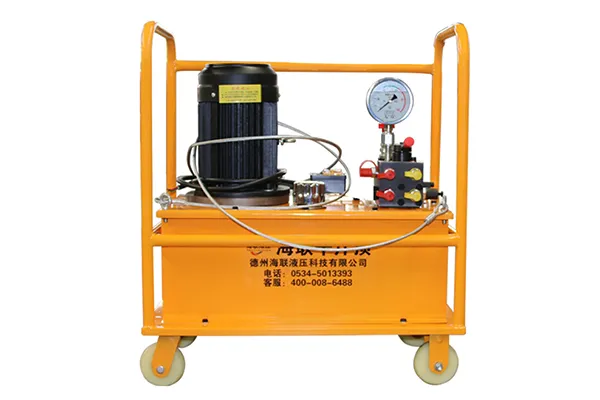

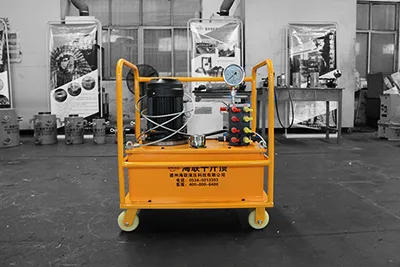

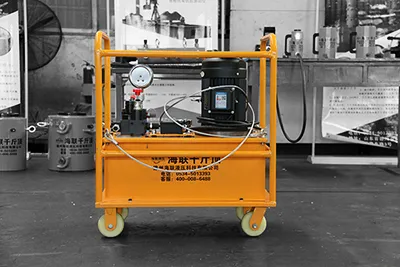

Electric Hydraulic Power Unit
Electrically-powered hydraulic power pack for powering hydraulic tools in construction projects
- Engine/Motor Electric
- Max. Power 3.0 kW
- Max. Output Flow 3.0 L/min
This ultra-high-pressure electric hydraulic power unit is suitable for continuous operation in various industrial applications within the 100 MPa - 300 MPa range. It can also be paired directly with matching high-pressure hydraulic tools for pushing, pulling, expanding, clamping, bending, lifting, and pressing operations.
Technical Parameters
Displacement 1.0 L/min |
Displacement 2.0 L/min |
Displacement 3.0 L/min |
|
| Rated Pressure (MPa) | 70 | 70 | 70 |
| Output Flow (L/min) | 1 | 2 | 3 |
| Motor (kW) | 1.5 | 2.2 | 3 |
| Oil Tank Capacity (L) | 24 | 36 | 54 |
| Weight (kg) | 60 | 85 | 105 |
| Oil Tank Size mm (L*W*H) | 390*300*230 | 450*350*230 | 650*450*230 |
Applications

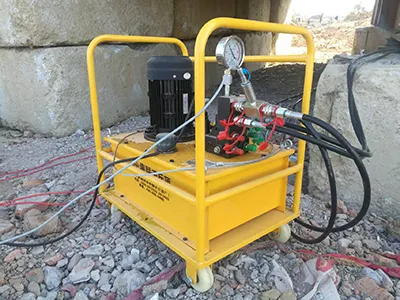

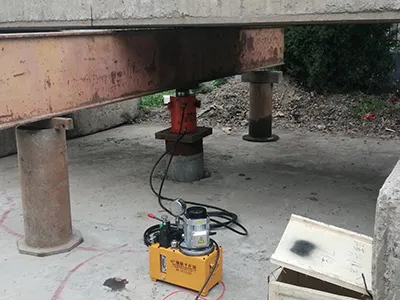

Widely used in foundation construction, bridge lifting, and structural maintenance, the electric hydraulic power unit delivers consistent, powerful hydraulic energy, ensuring stable and efficient performance in demanding on-site conditions.
Features
- Modular design with easily replaceable pressure-holding and pressure-regulating valves for convenient on-site adjustment.
- Self-venting pump head design to prevent air intake.
- Supports an automatic unloading mechanism to reduce operator effort.
- Provides pressure-limiting and unloading protection to prevent damage to hydraulic jacks.
- Equipped with manual unloading options and supports emergency operation in the event of motor failure or power outage.
- Phase-loss protection automatically disconnects power when supply phases are lost to protect the motor coil.
- Two-stage pressure regulator improves pressure-holding performance.
- Color-coded (red/green) loading ports, unloading ports, and hoses for easier installation.
- Three-sided protective guard rail and four lifting rings with steel wire lifting ropes for safe and convenient operation.
- Optimized oil tank design improves hydraulic oil utilization and includes a large oil-filling filter for easier refilling.
