Portable Electric Hydraulic Pump
Hydraulic power pack for operating hydraulic tools in remote or off-grid job sites
- Engine/Motor Electric
- Max. Power 0.75 kW
- Max. Output Flow 0.4 L/min

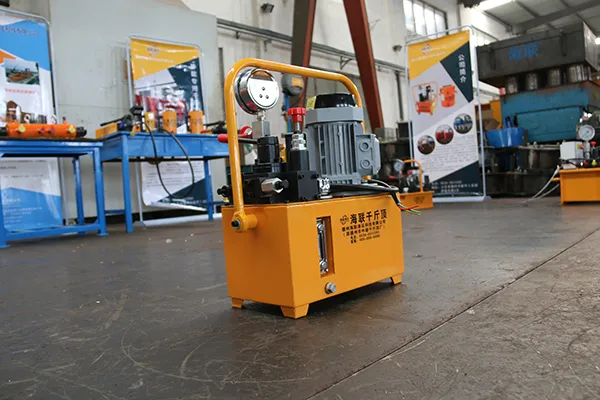

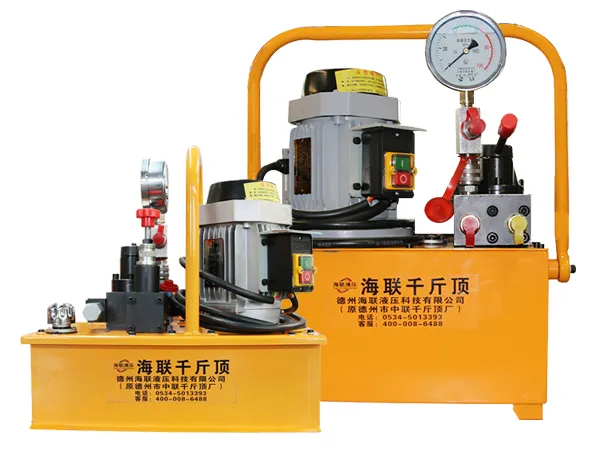

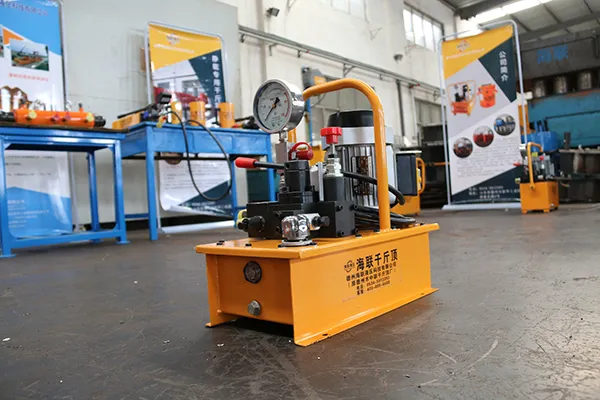

The portable electric hydraulic pump features a compact and lightweight design, making it easy to carry to any required location. It simplifies high-altitude tasks, confined-space work, or remote operations by improving convenience and efficiency.
Technical Parameters
- Rated Pressure: 70 MPa
- Output Flow: 0.3 L/min
- Motor: 0.55 kW
- Oil Tank Capacity: 96 L
- Weight: 20 kg
- Oil Tank Size (L*W*H): 460*250*400 mm
- Rated Pressure: 70 MPa
- Output Flow: 0.4 L/min
- Motor: 0.75 kW
- Oil Tank Capacity: 16.8 L
- Weight: 30 kg
- Oil Tank Size (L*W*H): 470*220*560 mm
Applications

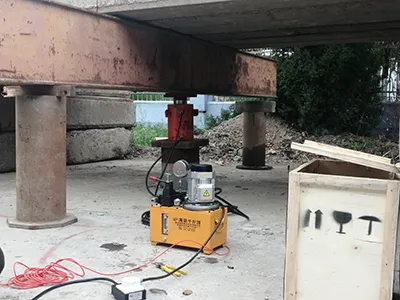

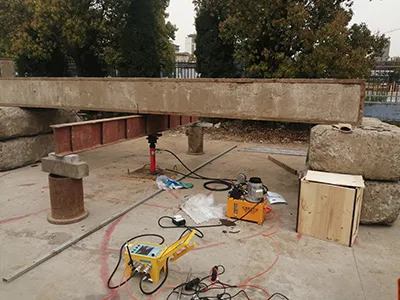

Perfect for compact operations and maintenance work, the portable electric hydraulic pump provides convenience and stability for hydraulic testing, lifting, and structural adjustment tasks in confined construction environments.
Features
- High-pressure output: Generate extremely high oil pressure through hydraulic principles with minimal effort.
- Simple operation: Equipped with a directional control handle and a pressure-relief valve, offering intuitive and user-friendly operation.
- Excellent safety: The portable electric hydraulic pump produces no electrical sparks and is suitable for environments with flammable or explosive risks.
- Precise control: Manual operation allows fine control for lifting tasks or small-scale displacement adjustments.
