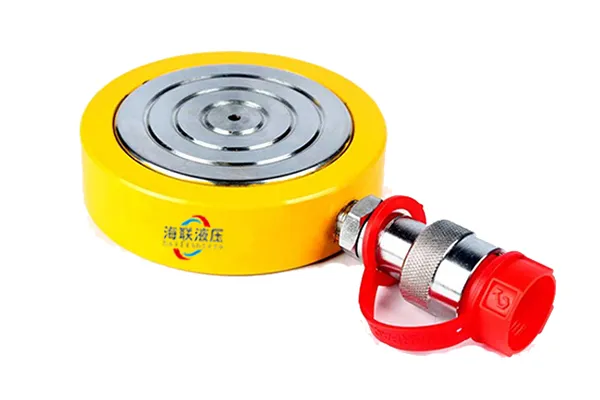

Hydraulic Pancake Jack/Flat Jack
Low height hydraulic cylinders for lifting and positioning operations in confined spaces with low overhead clearance
The pancake/flat hydraulic jack features a lightweight, compact design ideal for narrow working spaces. Its painted surface enhances corrosion resistance for improved durability.

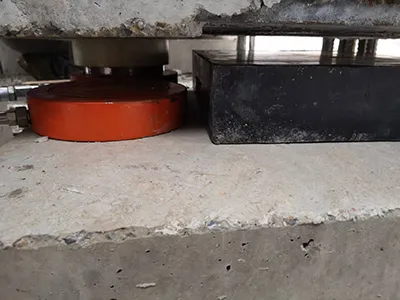

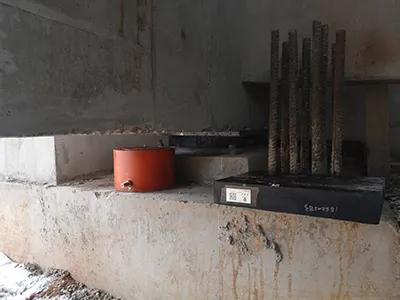

On-Site Applications
Technical Parameters
| Models | Lifting Capacity (T) | Stroke (mm) | Cylinder Area (cm²) | Body Height (mm) | Open Height (mm) | Outer Diameter (mm) | Weight (kg) |
|
|
5 | 6 | 6.4 | 33 | 39 | 59*41 | 1 |
|
|
10 | 11 | 14.5 | 43 | 54 | 83*56 | 1.4 |
|
|
20 | 11 | 28.6 | 52 | 63 | 102*76 | 3.1 |
|
|
30 | 13 | 42 | 59 | 72 | 118*95 | 4.5 |
|
|
50 | 16 | 62.1 | 67 | 83 | 140*114 | 6.8 |
|
|
75 | 16 | 102.7 | 80 | 96 | 165*139 | 11.4 |
|
|
100 | 16 | 126.8 | 86 | 102 | 178*152 | 14.5 |
|
|
150 | 16 | 198.1 | 100 | 116 | 216*191 | 26.3 |
Features
- Ultra-thin design: Extremely low starting height allows easy insertion into tight spaces.
- High lifting capacity: Compact body delivers strong lifting force, supporting loads up to hundreds of tons.
- Durable structure: Manufactured from high-strength alloy steel for reliable long-term performance.
- Flexible operation: Available in integrated or separated configurations (with hose connection) for easier use.
- Portable and compact: Lightweight construction makes it convenient for carrying and storage.
- Wide application range: Suitable for automotive repair, industrial equipment maintenance, construction engineering, and other low-clearance lifting scenarios.
